Descriptions

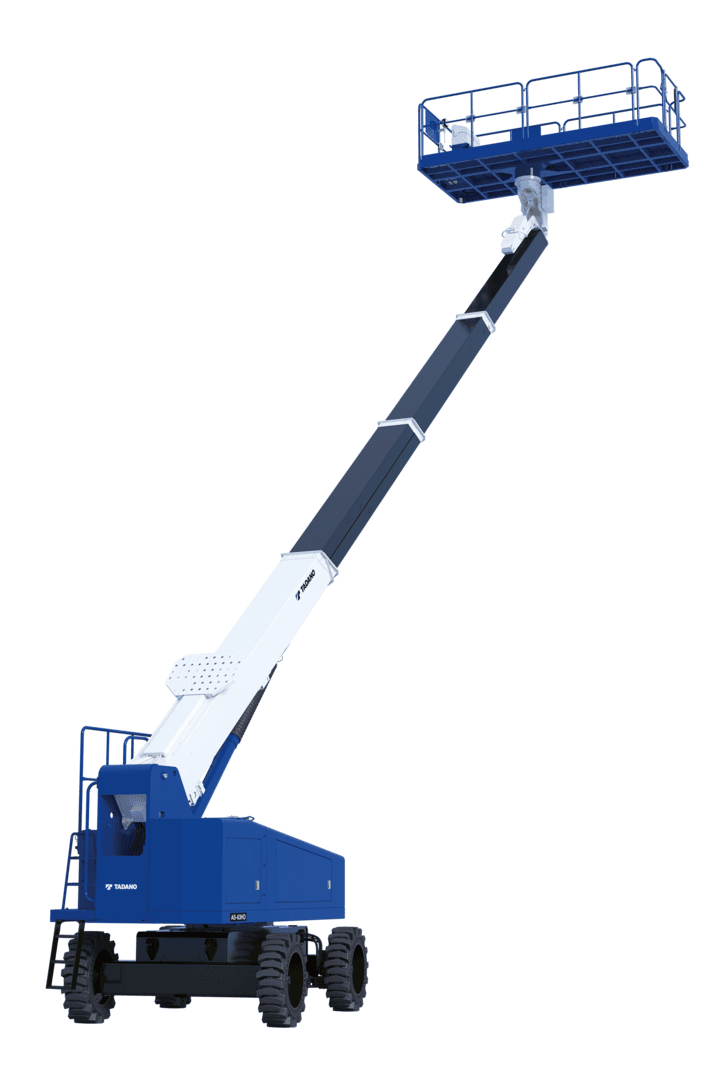

The AS-63HD and its maximum 2,200-lb (1-tonne) platform capacity stand apart as the first-of-its-kind in North America, combining the outreach of a boom lift with the vertical lifting power of an RT scissor lift. Dual-Capacity Mid-Range Telescopic Crawler Boom The AS-63HD was designed to tackle high-reach applications with superior platform capacity and stability. This heavy-duty telescopic boom lift, with a platform height of 62 ft 8 in (19.1 m) and maximum horizontal outreach of 37 ft 4 in (11.4 m), significantly reduces common safety risks and productivity bottlenecks. Drawing from its extensive experience in quality crane manufacturing, Tadano is uniquely positioned to develop a high-capacity boom lift that not only reduces the potential of both overloading and tip-overs but also delivers performance that operators will appreciate. The model’s rigid crane-inspired mast and four-section synchronized telescoping boom ensure near-zero platform deflection, enhancing stability for occupants. Additionally, no outriggers or stabilizers are required, reducing setup time. The AS-63HD’s exclusive automatic 4-motion control allows operators to easily position it in any straight-line direction, and it also offers an exceptional working range with its 360-degree continuous platform rotation, giving occupants superior flexibility to work in overhead areas without moving the chassis. And with its massive platform, measuring 13.8 x 6.3 x 3.6 feet (4.2 x 1.94 x 1.1 m), the AS-63HD can handle up to 10 occupants or any mix of fewer occupants with heavy tools or materials within the capacity requirements. This makes it ideal for steel erection, pipefitting, glazing, and welding applications, with optional generator installation packages and a 120V AC outlet on the platform. Powered by a 74.3-hp (55.4 kW) Kubota V3800 engine, the 4WD-unit with solid tires offers gradeability up to 40% with 5-degree tilt control and travel speeds up to 3 mph (4.8 km/h) to traverse job sites. With its combination of boom lift and scissor lift features, the AS-63HD works well on congested sites, such as industrial construction and infrastructure projects, to deliver high utilization and improve ROI. Manufactured in Japan, the AS-63HD’s design ensures long-term durability and reliability for rental fleets and end users alike. Initial availability for the AS-63HD will focus on the U.S. and Canada, with expansion into additional markets to follow.

Contact for Pricing
